witboost Configurations

A typical witboost configuration file is a YAML file containing settings for both frontend and backend, and of different modules altogether (Builder and Marketplace). This file can be stored inside the values file for the helm chart described above, or can be passed directly to the process as an argument.

In this section we will report an overall description of each configuration entry.

N.B.: All private values that are critical from a security standpoint must be stored in an external secret manager (e.g. Hashicorp Vault). All this kind of entries will be highlighted by the SECRET notation.

app:
  # Frontend base URL. This is the public endpoint that users will connect to. In all our deployments this must
  # be the same as "backend.baseUrl"
  baseUrl: https://my.witboost.deployment.com
  # Application title. Usually you can just set it to "witboost"
  title: witboost
backend:
  # Backend base URL. This is the public endpoint that will expose the APIs. In all our deployments this must
  # be the same as "app.baseUrl"
  baseUrl: https://my.witboost.deployment.com
  listen:
    # HTTP port that the backend will be listening to. The default value is 7007
    port: 7007
  httpServer:
    # The number of milliseconds of inactivity the server needs to wait for additional incoming data, after it has finished writing the last response, before a socket will be destroyed.
    # A value of 0 will disable the keep-alive timeout behavior on incoming connections.
    keepAliveTimeout: 5000
  auth:
    keys:
      # [SECRET] Authorization secret for backend-to-backend communications. The key can be any base64 encoded
      # secret. The following command can be used to generate such a key in a terminal:
      # > node -p 'require("crypto").randomBytes(24).toString("base64")'
      - secret: my_backend_plugins_auth_secret
  cors:
    # Backend base URL used to prevent Cross Origins errors. This is usually the same as "app.baseUrl"
    origin: https://my.witboost.deployment.com
  # Auditing configurations
  audit:
    # By setting this to false, auditing will not be performed neither for REST nor for GraphQL APIs
    enabled: true
    # Set to true if audit should not record server to server requests
    skipServerToServerRequests: true
    # For REST calls, only the methods listed here will be audited
    methods:
      - GET
      - POST
      - PUT
      - PATCH
      - DELETE
  # This is the database configuration used by both Builder and Marketplace modules.
  # Each will have its separate database configuration, but they can be the same in case you are relying on a
  # single external database
  database:
    plugin:
      # Database configuration for the Marketplace module
      marketplace:
        # The only supported RDBMS right now is postgres, so this will be fixed to "pg"
        client: pg
        connection:
          # Database name for the Marketplace module, usually can be set to "marketplace"
          database: marketplace
          # Database remote hostname
          host: witboost.database.com
          # Database user
          user: meshdev
          # [SECRET] Database password
          password: my_postgresql_password
          # SSL configuration for the database. It is enough to set rejectUnauthorized flag to false
          ssl:
            rejectUnauthorized: false
    # Database configuration for the Builder module. Also in this case the only supported RDBMS is postgres
    client: pg
    connection:
      # Database name for the Builder module, usually can be set to "builder"
      database: builder
      # Database remote hostname
      host: witboost.database.com
      # Database user
      user: meshdev
      # [SECRET] Database password
      password: my_postgresql_password
      # SSL configuration for the database. It is enough to set rejectUnauthorized flag to false
      ssl:
        rejectUnauthorized: false
  # Configurations for the management of user configurations that can be set in the settings panel.
  # Among these configurations an user can set his/her own tokens for integrations with third-party services.
  userConfig:
    secrets:
      # [SECRET] Symmetric key for user configurations encryption. The key can be any 32 bytes hexadecimal key.
      # The following command can be used to generate such a key in a terminal:
      # > node -p 'require("crypto").randomBytes(32).toString("hex")'
      key: my_config_key
      # [SECRET] Input vector for user configurations encryption. The key can be any 16 bytes hexadecimal key.
      # The following command can be used to generate such a key in a terminal:
      # > node -p 'require("crypto").randomBytes(16).toString("hex")'
      iv: my_config_iv
# This is the section to configure action handlers associated to different hooks inside witboost.
# To have a better understanding of this feature, please refer to the "Action Handlers" chapter.
# Here is reported the default behavior for access requests
actionHandlers:
  # Selector for the action handler of the "access request" operation
  accessRequest:
    onFailure:
      # Specify the number of attempts to perform on a failed request towards the Provisioning Coordinator. the default strategy is exponential backoff
      retries: 3
    polling:
      # Specify the interval between polling cycles. milliseconds
      interval: 30000
      # Specify the max amount of time in milliseconds after which the polling gets stopped even if stop condition is not reached
      timeout: 180000
    # Public Hasura endpoint that will be used to handle hooks
    graphQLUrl: https://witboost.hasura.com/v1/graphql
    # Update ACL URL that is invoked when an access request operation is successfully completed.
    # The URL should contain the remote Provisioning Coordinator URL with the correct operation's path
    updateAclUrl: http://datamesh-provisioningcoordinator.datamesh-provisioningcoordinator:8088/datamesh.provisioningcoordinator/1.0/updateacl
    getExecutionPlanStatusUrl: http://localhost:8088/datamesh.provisioningcoordinator/v1/execution-plans/{{planId}}/status
    # List of hooks that will be invoked to accept or reject the operation
    hooks:
      # The default hook is notification-based: a notification is sent to the owner for approval
      - type: notificationAccessControl
# Auditing configurations
audit:
  # By setting this to false, auditing will not be performed neither for REST nor for GraphQL APIs
  enabled: true
  # Set to true if audit should not record server to server requests
  skipServerToServerRequests: true
  # For REST calls, only the methods listed here will be audited
  methods:
    - GET
    - POST
    - PUT
    - PATCH
    - DELETE
  cleaners:
    # table name to clean
    audits:
      # enable/disable the cleaning process
      enabled: true
      scheduling:
        # define a trigger frequency for the cleaning process
        frequency: { days: 1 }
      options:
        # define the retention policy for the audits table. 180 days means that all the audits older than 180 days will be deleted
        retention: { days: 180 }
        # optionally, define which methods should be cleaned up.
        # do not define any methods if you want to clean them all
        methods:
          - GET
# Authentication configurations, to select a remote identity provider
auth:
  # Autologout feature configuration
  autologout:
    # Enable/disable the autologout feature
    enabled: true

    # (optional) Number of minutes after which the inactive user is logged out automatically.
    # Default is 60 minutes (1 hour)
    idleTimeoutMinutes: 60

    # (optional) Number of seconds before the idle timeout where the user will be asked if it's still active.
    # A small window will be shown.
    # Default is 10 seconds.
    # Set to 0 seconds to disable the prompt.
    promptBeforeIdleSeconds: 10

    # (optional) Enable/disable the usage of worker thread timers instead of main thread timers.
    # Default is true.
    # If you experience some browser incompatibility, you may try to set this to false.
    useWorkerTimers: true

    # (optional) List of events that the autologout event listener will catch to detect if the user is active
    # These events are standard DOM events. Take a look at the documentation to see supported values.
    events:
      - eventNameA
      - eventNameB

  environment: default
  providers:
    # By setting a provider, witboost will use it to authenticate the user during the login operation.
    # In here an example of definition for a Microsoft Active Directory provider is displayed.
    # You can check the different providers requirements directly from the Backstage official documentation
    # TODO update this?
    microsoft:
      default:
        clientId: 11111111-ffff-aaaa-8888-999999999999
        clientSecret: my_azure_ad_client_secret
        tenantId: 22222222-eeee-4444-cccc-000000000000
# Permission configurations for the RBAC plugin
permission:
  # By setting this to false, no permission rules are enforced. This means that each user enabled to perform
  # operations on the target systems will not be blocked by witboost in case they do not have the right permissions
  enabled: true
# Integration configurations with repository managers.
# You can check the different providers requirements directly from the Backstage official documentation
integrations:
  # Set to true to tell Builder to use users tokens when authorizing write operations on the target Git provider
  usePersonalToken: true
  # Here an example of how a Gitlab integration can be configured
  gitlab:
    # Remote host of the repository manager
    - host: gitlab.com
      # [SECRET] Token that witboost will use to authenticate on the target repository manager. This token is used by
      # witboost backend to read the entities stored in the remote repositories, so it just needs to have read scopes.
      token: my_gitlab_token
# Configuration related to in-app and email notifications, customizable by event
notifications:
    # Configurations for the management of webhooks
    webhooks:
    # Configuration for managing secrets used for encrypting/decrypting sensitive headers
      secrets:
        # [SECRET] Symmetric key for user configurations encryption. The key can be any 32 bytes hexadecimal key.
        # The following command can be used to generate such a key in a terminal:
        # > node -p 'require("crypto").randomBytes(32).toString("hex")'
        key: string;
        # [SECRET] Input vector for user configurations encryption. The key can be any 16 bytes hexadecimal key.
        # The following command can be used to generate such a key in a terminal:
        # > node -p 'require("crypto").randomBytes(16).toString("hex")'
        iv: string;
       # A list of user entity fields that should be included in the webhook payload in place of the user entity reference.
       # Fields are specified as paths from the root level object of the user entity.
      userEntityFields: ['metadata.name', 'metadata.surname', 'spec.email']
  # email configuration
  emailConfig:
    # whether the email sending is enabled or not
    enabled: true/false
    # the path where the email address can be found in the user entity. Defaults to 'spec.profile.email'.
    userEntityEmailField: 'spec.profile.email'
    # name of the email sender that will be shown to the recipients
    senderName: Witboost
    # configuration related to the html email template
    html:
      # the app name that will be displayed inside the email
      appName: Witboost
      # path of the logo that will be displayed at the top of the email
      # the file must be under the wb-notification-backend plugin folder
      # the default witboost logo is available using the path shown below
      logoPath: 'src/resources/logo.svg'
      # Optional field about the footer information that will be displayed at the bottom of the email, inside the footer
      # you can use html tags inside the string, as shown below for the default value
      footer: '<strong>witboost</strong> is a product by <strong>Agile Lab s.r.l.</strong> <a href="https://www.agilelab.it" style="color: inherit;">www.agilelab.it</a>'
      # theme configuration
      color:
        # primary color that will be used as background color for the footer
        primary: '#00acc1'
        # secondary color that will be used for the notification title and for the link
        secondary: '#00acc1'
        # text color for the body of the notification
        text: '#4e6980'
        # color for the text inside the footer
        footerText: '#ffffff'
    # configuration related to email account information and authentication
    auth:
      # hostname of the smtp server related to the provider used
      host: smtp-mail.provider.com
      # port of the smtp server related to the provider used
      port: 587
      # authentication type: the value can be 'login' or 'oauth2'
      type: login
      # email account to use
      user: witboost@agilelab.it
      # optional field to specify the password for the login authentication type
      password: passwordValue
      # optional field to specify the client id for the 3-legged oauth2 authentication type
      clientId: clientIdValue
      # optional field to specify the client secret for the 3-legged oauth2 authentication type
      clientSecret: clientSecretValue
      # optional field to specify the access token for the 3-legged oauth2 authentication type
      accessToken: accessTokenValue
      # optional field to specify the refresh token for the 3-legged oauth2 authentication type
      refreshToken: refreshTokenValue
      # optional field to specify the service client for the 2LO oauth2 authentication type
      serviceClient: serviceClientValue
      # optional field to specify the private key for the 2LO oauth2 authentication type
      privateKey: privateKeyValue
  # configuration filters to enable/disable in-app/email notification by event
  byEvent:
    # Event name. This list contains all the supported ones
    - event: NewVersion
      # Flag to set the in-app notification for this event
      sendNotification: true
      # Flag to set the email notification for this event
      sendMail: false
      # Array containing the recipients that you want to notify.
      # Supported values: 'dataProductConsumersOwners', 'dataProductOwners', 'none'
      recipients: ['dataProductConsumersOwners']
      # Optional value to customize the notification message for this event.
      notificationText: 'My custom message about the new version: {{displayName}}.'
    - event: NewSystem
      sendNotification: true
      sendMail: true
      recipients: ['dataProductOwners']
      notificationText: 'A new data product, {{displayName}}, has been registered!'
    - event: NewTemplate
      sendNotification: true
      sendMail: false
      recipients: ['dataProductOwners']
    - event: NewDomain
      sendNotification: true
      sendMail: false
      recipients: ['dataProductOwners']
    - event: NewPolicy
      sendNotification: true
      sendMail: false
      recipients: ['dataProductOwners']
  # configuration for channels
  channels:
    # configuration for push channel
    push:
      # retry configuration for push channel
      retryStrategy:
        # The delay between each attempt in milliseconds. You can provide a factor to have the delay grow exponentially. Default is 500
        delay: 500
        # The factor option is used to grow the delay exponentially. For example, a value of 2 will cause the delay to double each time. Default is 2
        factor: 2
        # The maximum number of attempts or 0 if there is no limit on number of attempts. Default is 4
        maxAttempts: 4
# Catalog configurations, regarding all the entities managed by the Builder backend
catalog:
  # Interval between each repository refresh for every entity (this is not the exact value, which is increased up to 50%)
  # The value is a duration object, that has one or more of the fields years, months, weeks, days, hours, minutes, seconds, and milliseconds.
  # You can combine them, for example as { hours: 1, minutes: 15 } which means that you want the processing loop to visit entities roughly once every 75 minutes.
  processingInterval: { minutes 60 }
  # Enables additional preliminary validity checks on publish phase when creating a new data product or component (possible values are true or false)
  enablePreliminaryChecks: true
  # Enables or disable the async validation (possible values are true or false)
  enableAsyncValidation: true
  # Enable or disable unregistering domains which have still entities registered in the domain
  disableNonEmptyDomainUnregister: false
  # Enable or disable unregistering data products that are present in the marketplace
  disableDeployedDataProductUnregister: false
  # URL whitelisting configuration to restrict catalog imports to only authorized sources
  # This prevents unauthorized or potentially malicious catalog imports by restricting the sources from which entity definitions can be fetched
  locationsWhitelist:
    # Regular expression patterns (recommended)
    - ^https://github\.com/my-org/.*
    - ^https://gitlab\.com/my-company/.*
    - ^https://bitbucket\.org/my-team/.*
    # Literal string patterns (fallback) - simple substring matching
    # - github.com
    # - gitlab.com
  rules:
    # List of all the entities kinds that will be handled by the Builder backend
    - allow:
        - Component
        - API
        - Resource
        - Template
        - System
        - Domain
        - Group
        - User
        - Location
        - Release
  # List of all the entities kinds that will be hidden in the entitis page
  hiddenKinds:
    - Hierarchy
    - HierarchyClass
  # Additional processors, in this case used to read users and groups from a remote organization manager
  providers:
    # By setting a provider, witboost will use it to retrieve users and groups. A user needs to be retrieved by this
    # processor in order to enable the login.
    # In here an example of definition for a Microsoft Active Directory provider is displayed.
    # You can check the different providers requirements directly from the Backstage official documentation
    microsoftGraphOrg:
      default:
        target: https://graph.microsoft.com/v1.0
        authority: https://login.microsoftonline.com
        clientId: 11111111-ffff-aaaa-8888-999999999999
        clientSecret: my_azure_ad_client_secret
        tenantId: 22222222-eeee-4444-cccc-000000000000
        # In here we set some filters to avoid importing ALL the users and groups of the entire Active Directory
        # In this example we will fetch only users and groups that are contained in the root group "witboost"
        userGroupMemberFilter: "displayName eq 'witboost'"
        groupFilter: "displayName eq 'witboost'"
    # With this configuration you can change how entity names are pre-processed before storing them in teh database
    # You can completely ignore this configuration if you are fine with the default behavior
    entityNameNormalization:
      # This regex selects the values to be replaced
      regex: '[^a-zA-Z0-9_\\-\\.]'
      # This is the character that will be used to replace them
      replaceWith: '_'

# Global platform configurations
platform:
  # express.js maximum payload size in megabytes. this helps allowing bigger file uploads when used in combination with the FilePicker
  httpPayloadSizeLimitMb: 10

# Configurations for the witboost modules
mesh:
  # If this is set, every user will see this page as the home page. This must be an internal URL reachable by ALL USERS. If it's not set,
  # users with access to the Builder will have the "my projects" page as home, while all the others will have the "visual discovery" page
  homeURL: marketplace/search
  # Catalog custom configurations
  catalog:
    # Scheduling of the org data provider (how often groups and users are fetched)
    schedule:
      # Scheduling frequency of org data in seconds
      frequency: 3600
      # Timeout for the org data invocation in seconds
      timeout: 180
  # Marketplace module configurations
  marketplace:
    # Enable or disable selecting multiple resources when creating an access request
    multipleAccessRequestSelection: false
    # Public Hasura endpoint that will be used to handle hooks
    baseUrl: https://witboost.hasura.com/v1/graphql
    # Optional Hasura endpoint that will be used by the backend. # If not present, it will default to baseUrl.
    backendUrl: https://witboost.hasura.com/v1/graphql
    # [SECRET] Hasura admin token, used only for backend read operations (e.g. search index creation)
    hasuraToken: my_hasura_admin_secret
    # If you are querying hasura without the right certificate manager on your development environment
    # you might need to set this variable to TRUE in order to send http query instead of https
    # By DEFAULT this is set to FALSE and this is the recommended behaviour in general
    useHttpsSearchUnauthorized: false
    # (optional) Hasura claims to be included in the JWT.
    hasuraClaims:
      # lists all allowed roles for the user, in this case the `user` role is an allowed role
      x-hasura-allowed-roles: ['user']
      # if you specific a list of allowed roles (even just one), it is mandatory to specify a default role to be picked during requests (e.g. in this example `user` role will be the default picked role)
      x-hasura-default-role: user
    # UI configurations
    ui:
      # Marketplace List page config
      listPage:
        # Show the Marketplace List page in the sidebar
        enabled: false
      # Show Observability Tab in Dataproduct/OutputPort Page
      showObservability: true
      # DataProduct page configurations
      dataProductPage:
        # Optional field used to display the technical information card when the Data Product descriptor contains the specified fields
        technicalInformation:
          # Adding these elements will enable the visualization of the technical information contained inside the corresponding fields of the Data Product
          # descriptor, if present. Invalid data inside the descriptor is ignored.
          - buildInfo
          - deployInfo
        generalInfo:
          # This is a list of first level fields that you want to avoid displaying in the data product page's general information card
          excludeDescriptorPaths:
            - fieldOne
            - fieldTwo
        # Optional field used to add custom fields to be shown inside the data product General Information card.
        additionalGeneralInfo:
          # It contains a list of custom fields, specifying for each additional field:
          # The string label to be displayed for the field.
          - label: My custom field
            # The string value: the values in double brackets will be resolved with the values from the data product descriptor using Nunjucks.
            # It is important to enforce the string type for this field inside the yaml by using the single quotes as shown to avoid errors.
            value: 'the values are {{ specific.dbName }} and {{ specific.viewName }}'
            # The field type: string | date. Changing the field type will change the way the field will be rendered in the UI.
            type: string
            # Optional field to specify an external URL. If present, the field will be automatically rendered as a link (you don't need to change the type).
            # As shown for the value field, it can contain static string and/or values to be resolved from the descriptor, by using the same notation.
            href: '{{ specific.myCustomLink }}'
      # Optional Search Page configuration.
      searchPage:
        # Determines the options available in the Order by dropdown menu.
        orderBy:
          # The field used to sort the data products in the search page, and the labels for the ascending and descending order.
          - field: _computedInfo.publishedAt
            ascLabel: Least Recent
            descLabel: Most Recent
      # Output Port page configurations
      outputPortPage:
        # The field used to store the data sharing agreements in the descriptor. The marketplace will use this field to display the relative widget in the UI.
        dataSharingAgreementFieldName: dataSharingAgreements
        # Links displayed in this page
        links:
          # By changing the following values you can decide which output port field will be used to display the related link.
          # e.g. in this case the live data link will be displayed only if the deployInfo.liveData field is set, and will point to its value
          endpoint: dataContract.endpoint
          liveData: deployInfo.liveData
          dataCatalog: deployInfo.dataCatalog
        # Optional field used to display the technical information card when the Output Port descriptor contains the specified fields
        technicalInformation:
          # Adding these elements will enable the visualization of the technical information contained inside the corresponding fields of the Output port
          # descriptor, if present. Invalid data inside the descriptor is ignored.
          - buildInfo
          - deployInfo
        # Optional field used to add custom fields to be shown inside the output port General Information card.
        additionalGeneralInfo:
          # It contains a list of custom fields, specifying for each additional field:
          # The string label to be displayed for the field.
          - label: My custom field
            # The string value: the values in double brackets will be resolved with the values from the output port descriptor using Nunjucks.
            # It is important to enforce the string type for this field inside the yaml by using the single quotes as shown to avoid errors.
            value: 'the values are {{ specific.dbName }} and {{ specific.viewName }}'
            # The field type: string | date. Changing the field type will change the way the field will be rendered in the UI.
            type: string
            # Optional field to specify an external URL. If present, the field will be automatically rendered as a link (you don't need to change the type).
            # As shown for the value field, it can contain static string and/or values to be resolved from the descriptor, by using the same notation.
            href: '{{ specific.myCustomLink }}'
      # Access Control configurations
      accessControl:
        # If this flag is true, the user will only be displayed groups he/she belongs to, and users belonging to them;
        # If this flag is set to false, the user will see all users and groups.
        showOnlyUserOwnGroups: false
        # If this flag is true, the dpOwner will be able to revoke access to users who have access to the output ports of that dataproduct;
        # If this flag is set to false, the dpOwner will not see button for revoke access.
        enableRevokeRequest: false
        # If this flag is true, the dpOwner will be able to see for each user list of access completed and request for output port of one dataproduct
        # If this flag is set to false, the dpOwner will not see  list of users which have almost one access at one outputport of a data product.
        usersGroupsTab: false
        # Configuration for the access/revoke request dialog.
        requestDialog:
          # Maximum number of resources — which are affected by the request — to show in the summary.
          # If 'null', all resources will be shown.
          maxNumberOfVisibleResources: 5
      # Mesh Supervision page configurations
      meshSupervisionPage:
        # Show page
        enabled: true
        # Summary Kpi Card configurations
        summaryKpiCard:
          # Show card
          enabled: true
        # Usage Kpi Card configurations
        usageKpiCard:
          # Show card
          enabled: true
        # System Distribution Kpi Card configurations
        systemsDistributionKpiCard:
          # Show card
          enabled: true
        # Env Alignment Kpi Card configurations
        envAlignmentKpiCard:
          # Show card
          enabled: true
        # Network Effect Kpi Card configurations
        networkEffectKpiCard:
          # Show card
          enabled: true
        # Average questions Kpi Card configurations
        averageQuestionsKpiCard:
          # Show card
          enabled: true
      dataContracts:
        # Data Contracts page config
        page:
          # If true, enables the Data Contracts tab in the marketplace system page
          enabled: true
        # Data Contract configurations
        settings:
          # Descriptor path of all the data contract settings. Defaults to dataContract.settings
          globalPath: path.to.dataContract.settings
          # Descriptor path to ingestionMode. Defaults to globalPath.ingestionMode
          ingestionModePath: path.to.ingestionMode
          # Descriptor path to onBrokenContract. Defaults to globalPath.onBrokenContract
          onBrokenContractPath: path.to.onBrokenContract
          # Descriptor path to description. Defaults to globalPath.description
          descriptionPath: path.to.description
      dataContractsOverview:
        page:
          # If true, enables the Data Contracts Overview Page in the sidebar
          enabled: true
  # Search module configurations
  search:
    # Id of the search functionality for which you are configuring the search options
    marketplace-projects:
      # Top-level fields of the entities descriptor that will be indexed, and their relevance which must be 'A' or 'B' or 'C'
      indexFields:
        - path: name
          relevance: A
        - path: tags.tagFQN
          relevance: B
      # Filters for the search functionality. Each filter has a field, a label, and a type
      filters:
        - field: domain
          label: Domain
          type: choice
        - field: tags.tagFQN
          label: Tags
          type: text
        - field: deploymentInfo.deploymentDate
          label: Deployment Date
          type: date
        - field: consumable
          label: Consumable
          type: boolean
      # Collators scheduling options
      schedule:
        # How often you want the search index refresh to run, in minutes. The system does its best to avoid overlapping invocations.
        frequency:
          minutes: 10
        # The maximum amount of time (in minutes) that a single invocation of the search index can take, before
        # it's considered timed out and gets "released" such that a new invocation
        # is permitted to take place (possibly, then, on a different worker).
        timeout:
          minutes: 15
        # A delay, in seconds, that gives the backend server a chance to initialize before
        # any search collators are executed, which may attempt requests against the API.
        initialDelay:
          seconds: 3
      collatorOptions:
        batchSize: 100
  # Provisioner module configurations
  provisioner:
    # The URL must contain the remote Provisioning Coordinator URL
    baseUrl: http://datamesh-provisioningcoordinator.datamesh-provisioningcoordinator:8088/datamesh.provisioningcoordinator/1.0
    deployStep:
      # Optional field used to specified which field of the deploy step result we want to display.
      # Supports nested fields with the dot notation (e.g. 'info.result')
      # If not specified, the complete raw deploy step result will be displayed.
      resultField: result
  # Computational Governance Platform (CGP) configuration
  governance:
    # base URL where the CGP is listening to requests
    baseUrl: http://localhost:8088/datamesh.provisioningcoordinator
    metrics:
      # enable/disable metrics management on CGP
      enabled: true
      # CGP endpoints related to metrics
      createEndpoint: /v1/computational-governance/metrics
      testEndpoint: /v1/computational-governance/metrics/{{metricId}}/test
      updateEndpoint: /v1/computational-governance/metrics/{{metricId}}
      bumpVersionEndpoint: /v1/computational-governance/metrics/{{metricId}}
      changeStatusEndpoint: /v1/computational-governance/metrics/{{metricId}}/status
    policies:
      # CGP endpoints related to policies
      createEndpoint: /v1/computational-governance/policies
      testEndpoint: /v1/computational-governance/policies/{{policyId}}/test
      updateEndpoint: /v1/computational-governance/policies/{{policyId}}
      bumpVersionEndpoint: /v1/computational-governance/policies/{{policyId}}
      changeStatusEndpoint: /v1/computational-governance/policies/{{policyId}}/status
    stats:
      # Label to identify evaluation reports generated during a data product deployment operation
      deploymentEvaluationReportsLabel: deployment
      # Endpoints for CGP stats
      topFailedPoliciesEndpoint: /v1/computational-governance/policies/stats/top-failed
      policyExecutionStatsEndpoint: /v1/computational-governance/policies/stats/executions
      failedPolicyEvaluationStatsEndpoint: /v1/computational-governance/policies/stats/executions/failures
    resourceTypes:
      upsertEndpoint: /v1/computational-governance/resource-types
      getEndpoint: /v1/computational-governance/resource-types/{{resourceType}}
    resources:
      evaluationStatusSearchEndpoint: '/v1/computational-governance/resources/evaluation-status/search-query'

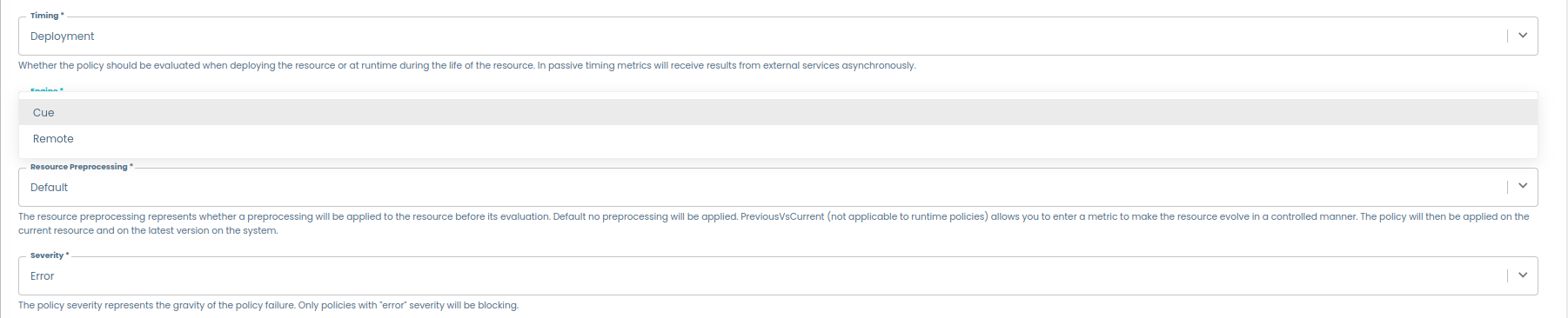

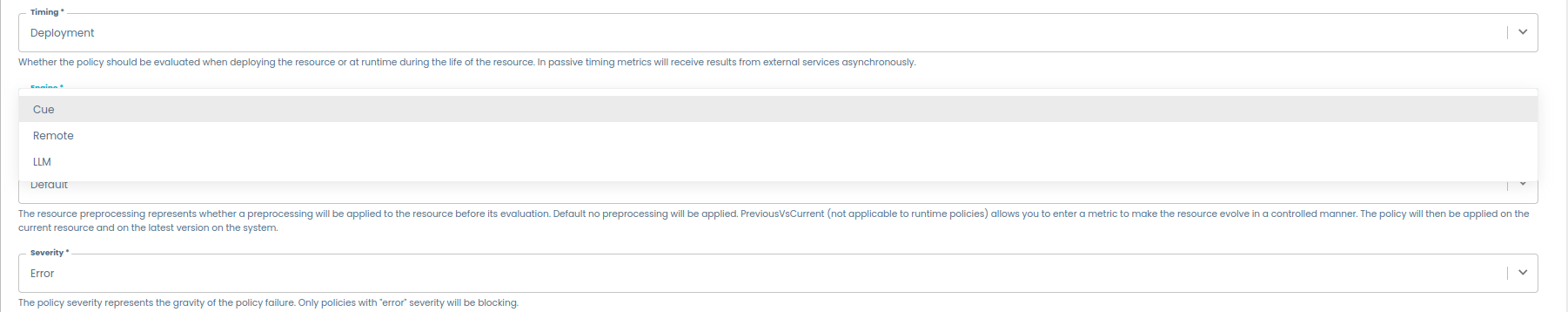

    agent:
      # Witty Governance Agent section
      cgp:
        # Witty Governance Agent enabled
        enabled: true
        # Witty Governance Agent remote URL
        url: http://127.0.0.1:8091
        # Witty Governance Agent remote endpoint
        endpoint: /v1/evaluate

  platformSettings:
    # Enable settings button
    enabled: true

  # Builder module configurations
  builder:
    ui:
      myProjectsPage:
        # It corresponds to the number of projects to display in the "My Projects" page
        pageSize: 25
      softwareCatalogPage:
        # It corresponds to the number of entities to display in the "Entities" page
        pageSize: 25
      remoteProvider:
        # Behavior of the pagination in the remote provider for the EntitySearchPicker and for CustomUrlPicker
        #  If true, the offset will be used as currentPage, if false, the offset will be used as currentPage * limit
        oldOffsetBehaviour: false

    editAndTest:
      subcomponents:
        # Subcomponents also inherit properties from parent component, in the generated descriptor
        inheritFromParent: true

    # List of environments handled by witboost.
    # Please note that this list will be pulled by external modules (marketplace, cgp)
    environments:
      - name: development
        priority: 1
      - name: staging
        priority: 2
      - name: production
        priority: 0
    # (Optional) The size limit of the payload for request sent to the builder.
    # If this property is not specified the default limit is set to 10mb. The value of the limit can be specified according to the syntax of the package `bytes` (https://www.npmjs.com/package/bytes).
    payloadSizeLimit: 10mb
    # Scaffolder module configurations
    scaffolder:
      reverseProvisioning:
        # this is the name of the key, related to environments config,
        # that is appended in the `params` object of the reverse provisioning request to tech adapters
        environmentSpecificConfigKey: environmentSpecificConfig
        # this is the name of the key, related to the descriptor,
        # that is appended in the `params` object of the reverse provisioning request to tech adapters
        descriptorKey: descriptor
      editorWizard:
        # choose between `strict`, `less_strict`, `no_strict`.
        # If no value is provided, it defaults to `no_strict`.
        # See docs for more information.
        prefillPolicy: no_strict
      # Blueprints configurations
      blueprints:
        # Whether blueprints should be enabled or not (blueprints are enabled by default)
        # Remember that to use blueprints, you have also to list them among the entities in catalog.rules.allow
        enabled: true
  # User headers configurations
  userHeaders:
    # Whether user headers should be enabled or not
    enabled: false
    # Name prefix of each user-defined header, separated from the rest of the name by a dash.
    # For example, if prefix is `wb-user`, header `my-header` becomes `wb-user-my-header`
    prefix: wb-user
  # Reserved fields consistency validator configurations
  reservedFields:
    # Global configuration of the consistency validator. It has two fields: `name` and `kind`.
    global:
      name: true
      kind: false
    # Local configuration of the consistency validator. You can specify the kind and write an array of paths you want
    # to enable the feature for.
    local:
      # Paths for the `System` entity kind.
      system:
        - 'spec.mesh.email'
        - 'spec.domain'
      # Paths for the `Component` entity kind.
      component:
        - 'spec.mesh.email'
        - 'spec.domain'
  documents:
    # Whether to enable document acceptance at login, compelling the user to accept necessary documents before using the platform.
    requireDocumentAcceptance: false
    # If present, defines the EULA to be loaded at startup time.
    # The EULA will be uploaded in english. For other EULA or documents, manual upload is necessary
    # Accepted values: [ STANDARD, AZURE_MARKETPLACE, PLAYGROUND, MVP]
    # If the type is set, it must NOT change during the lifetime of the platform, and once set it must stay the same
    eula: null
  # Git repository integration configurations
  repositoryManager:
    #  Whether to prioritize a native Git workflow (i.e. Git CLI commands) over API usage when both integrations are available.
    #  E.g. git push by cloning, fetching, committing, pushing vs git push through Gitlab/Bitbucket/... APIs
    #  Please note: not all functionalities feature a native git integration; in this case APIs will be used despite this flag.
    #  The opposite is true as well (i.e. some tasks are always completed by using native git commands)
    prioritizeGit: true

  # Configurations for the additional custom pages rendered leveraging microfrontends
  customPages:
    builder:
      # Here are listed all the microfrontend pages that will be displayed in the builder's system page
      systemPage:
        # For each page we need a title, which will be the one displayed in the tab label
        - title: 'Microfrontend project test'
          # The URL where the microfrontend is running
          url: 'http://localhost:4200'
          # The route where the page will be reachable inside witboost (must start with "/" and be a valid URL segment)
          route: '/test-project-microfrontend'
          # The unique identifier of the microfrontend component (must be alphanumerical and include only "-" and "_")
          identifier: 'test-marketplace-project'
          # Name of the mount function exposed by the microfrontend
          mountFunction: 'renderApplication'
          # Name of the unmount function exposed by the microfrontend
          unmountFunction: 'unmountApplication'
          # A list of all parameters that will be sent to the microfrontend
          parameters:
            # The name of the parameter
            - name: 'name'
              # The path of the parameter value extracted from the input object (take a look at the documentation for more details)
              valuePath: 'name'
      # Here are listed all the microfrontend pages that will be displayed in the builder's component page
      componentPage:
        # For each page we need a title, which will be the one displayed in the tab label
        - title: 'Microfrontend op test'
          # The URL where the microfrontend is running
          url: 'http://localhost:4200'
          # The route where the page will be reachable inside witboost (must start with "/" and be a valid URL segment)
          route: '/test-ci-microfrontend'
          # The unique identifier of the microfrontend component (must be alphanumerical and include only "-" and "_")
          identifier: 'test-marketplace-ci'
          # Name of the mount function exposed by the microfrontend
          mountFunction: 'renderApplication'
          # Name of the unmount function exposed by the microfrontend
          unmountFunction: 'unmountApplication'
          # A list of all parameters that will be sent to the microfrontend
          parameters:
            # The name of the parameter
            - name: 'name'
              # The path of the parameter value extracted from the input object (take a look at the documentation for more details)
              valuePath: 'name'
    marketplace:
      # Here are listed all the microfrontend pages that will be displayed in the marketplace's menu
      page:
        # For each page we need a title, which will be the one displayed in the tab label
        - title: 'Microfrontend test'
          # The URL where the microfrontend is running
          url: 'http://localhost:4200'
          # The route where the page will be reachable inside witboost (must start with "/" and be a valid URL segment)
          route: '/test-microfrontend'
          # The unique identifier of the microfrontend component (must be alphanumerical and include only "-" and "_")
          identifier: 'test-marketplace'
          # Name of the mount function exposed by the microfrontend
          mountFunction: 'renderApplication'
          # Name of the unmount function exposed by the microfrontend
          unmountFunction: 'unmountApplication'
          # A list of all parameters that will be sent to the microfrontend (for this page no parameters will be extracted)
          parameters: []
      # Here are listed all the microfrontend pages that will be displayed in the marketplace's project page
      projectPage:
        # For each page we need a title, which will be the one displayed in the tab label
        - title: 'Microfrontend project test'
          # The URL where the microfrontend is running
          url: 'http://localhost:4200'
          # The route where the page will be reachable inside witboost (must start with "/" and be a valid URL segment)
          route: '/test-project-microfrontend'
          # The unique identifier of the microfrontend component (must be alphanumerical and include only "-" and "_")
          identifier: 'test-marketplace-project'
          # Name of the mount function exposed by the microfrontend
          mountFunction: 'renderApplication'
          # Name of the unmount function exposed by the microfrontend
          unmountFunction: 'unmountApplication'
          # A list of all parameters that will be sent to the microfrontend
          parameters:
            # The name of the parameter
            - name: 'name'
              # The path of the parameter value extracted from the input object (take a look at the documentation for more details)
              valuePath: 'name'
      # Here are listed all the microfrontend pages that will be displayed in the marketplace's consumable interface page
      consumableInterfacePage:
        # For each page we need a title, which will be the one displayed in the tab label
        - title: 'Microfrontend op test'
          # The URL where the microfrontend is running
          url: 'http://localhost:4200'
          # The route where the page will be reachable inside witboost (must start with "/" and be a valid URL segment)
          route: '/test-ci-microfrontend'
          # The unique identifier of the microfrontend component (must be alphanumerical and include only "-" and "_")
          identifier: 'test-marketplace-ci'
          # Name of the mount function exposed by the microfrontend
          mountFunction: 'renderApplication'
          # Name of the unmount function exposed by the microfrontend
          unmountFunction: 'unmountApplication'
          # A list of all parameters that will be sent to the microfrontend
          parameters:
            # The name of the parameter
            - name: 'name'
              # The path of the parameter value extracted from the input object (take a look at the documentation for more details)
              valuePath: 'name'
  # This is defined how some fields are mapped in the UI when read from the database
  mapping:
    # Section that maps how tags are displayed to the user
    tag:
      # Generic tags associated to entities
      generic:
        # What the tag display value is. This is a Nunjucks string that will fallback to "tagFQN" if no value is returned
        display: '{{ tagFQN }}'
        # What the tag tooltip value is. This is a Nunjucks string that will fallback to "description" and then "tagFQN" if no value is returned
        tooltip: '{% if description %} {{ description }} {% endif %}'
        # What field is used to perform search queries on tags. This must be a field present in all tags (default: TagFQN)
        search: tagFQN
      # Specific catalog tags used int the schema columns
      schema:
        # What the tag display value is. This is a Nunjucks string that will fallback to "tagFQN" if no value is returned
        display: '{{ tagFQN }}'
        # What the tag tooltip value is. This is a Nunjucks string that will fallback to "description" and then "tagFQN" if no value is returned
        tooltip: '{% if description %} {{ description }} {% endif %}'
        # What field is used to perform search queries on tags. This must be a field present in all tags (default: TagFQN)
        search: tagFQN

# Technical documentation configuration, defining how documentation for the entities is generated and displayed
techdocs:
  generator:
    # This is the generator configuration. By setting it to 'local', the remote repositories will have the raw markdown files
    # interpreted at runtime. This is the default behavior, and works for up to hundreds of documentation repositories
    runIn: 'local'

practiceShaper:
  taxonomy:
    # A string which defines the label shown when referring to a taxonomy in the UI (ex: in the taxonomy selector)
    label: Data Landscape

    # An optional string representing the pluralized form for the taxonomy label
    # if not provided, a plural name will be inferred based on the label value
    pluralizedLabel: Data Landscapes

  # Configuration options for the processor responsible for synchronizing resource types between Practice Shaper and Governance Platform
  resourceTypesProcessor:
    enabled: true
    # If true, a resource type gets reprocessed only when its properties have changed since the last run
    cacheEnabled: true
    # Default resource type configuration sent to the Computational Governance Platform
    resourceTypeConfiguration:
      # Information about the shape of descriptors of this resource type
      descriptorConfiguration:
        # Field inside the resource descriptor that contains its unique identifier
        resourceNameField: 'id'
        # List of fields in the resource descriptor to be used to generate a display name
        resourceDisplayNameFields:
          - domain
          - name
          - version
        # Field inside the resource descriptor used to differentiate evaluation results for the same resource
        resourceFilterField: 'version'
      # Details about the perimeter resolver
      resolverConfiguration:
        # Base URL of the Perimeter Resolver service
        url: 'http://localhost:8088/datamesh.provisioningcoordinator'
        # Base path (without query params) to the resolve endpoint
        path: 'v1/resolve'
        # Maximum number of resources requested to the perimeter resolver per request (page size)
        batchSize: 6
  # Configurations to shape the interaction between Practice Shaper and the Marketplace
  marketplace:
    baseUrl: 'http://localhost:7007/api/marketplace' # an optional string indicating the Marketplace URl
    # Configuration options for the processor responsible for synchronizing resources between the Builder and the Marketplace
    resourceProcessor:
      enabled: true
      # If true, a resource gets reprocessed only when its properties have changed since the last run
      cacheEnabled: true
    # Configuration options for the processor responsible for synchronizing taxonomies between the Builder and the Marketplace
    taxonomyProcessor:
      enabled: true
      # If true, a taxonomy gets reprocessed only when its properties have changed since the last run
      cacheEnabled: true
    # Configuration options for the processor responsible for synchronizing domains between the Builder and the Marketplace
    domainProcessor:
      enabled: true
      # If true, a domain gets reprocessed only when its properties have changed since the last run
      cacheEnabled: true
# Startup actions plugin which executes *once* a set of predefined actions when Witboost is executed. Useful for register default locations
startupActions:
  catalog:
    # Default locations to be registered at startup on the catalog.
    # For Practice Shaper entities, use practiceShaperLocations instead
    # Differs from mesh.catalog.locations in that it doesn't re-register the locations in case they have been deleted
    defaultLocations: []
    # Default Practice Shaper entities to be registered at startup on the catalog. These locations are registered
    # if and only if there no other taxonomies registered on Witboost
    practiceShaperLocations:
      - https://github.com/agile-lab-dev/witboost-practice-shaper-presets/blob/master/src/data-landscapes/data-mesh/data-mesh-taxonomy.yaml
    # Default Access Control Request templates to be registered at startup on the catalog. These locations are registered
    # if and only if there no other Access Control Request templates registered on Witboost
    accessRequestLocations:
      - https://github.com/agile-lab-dev/witboost-default-access-control-request-template/blob/master/grant-template.yaml
      - https://github.com/agile-lab-dev/witboost-default-access-control-request-template/blob/master/revoke-template.yaml
  rbac:
    # Defines the RBAC preset to be loaded at startup. This consists of a set of roles and roles permissions
    # Current allowed values: [ default ]
    preset: default
    # If a preset is configured above, optionally is possible to define a list of roles subjects for each role
    # The key is equal to the preset value. E.g. For preset 'default', configuration should be written under key 'default'
  # default:
  #   rolesSubjects:
  #     ADMINISTRATOR: []
  #     READ_ONLY: []
  #     DP_OWNER: []
  #     DP_DEVELOPER: []
  #     GOVERNANCE: []

tip

In the catalog.providers.microsoftGraphOrg.default.(userGroupMemberFilter | groupFilter) part of the YAML file shown above, you can specify things other than "displayName eq 'witboost'" - this will filter out all the groups that are not strictly equal to "witboost". An example usage of this would be "startsWith(displayName, 'witboost')" - this is useful in the situation where you want to bulk import all the Microsoft AD groups that are related to the witboost(You just need to prefix the names of all the groups that you would like to bulk import).

Practice Shaper

References:

• Practice Shaper - User Manual
• Practice Shaper - Platform Team Manual

Taxonomy

Key: practiceShaper.taxonomy (optional)

Configuration options for taxonomy (data landscape) selectors in the UI

Key	Type	Required	Default	Description
label	string	No	Data Landscape	A string which defines the label shown when referring to a taxonomy in the UI
pluralizedLabel	string	No	value of label automatically pluralized	An optional string representing the pluralized form for the taxonomy label

Resource types processor

Key: practiceShaper.resourceTypesProcessor (optional)

Configurations settings for the processor responsible for synchronizing resource types between Practice Shaper and Governance Platform.

References:

• Practice Shaper - Resource types

Key	Type	Required	Default	Description
enabled	boolean	No	true	Whether to enable this processor
cacheEnabled	boolean	No	true	If true, a resource type gets reprocessed only when its properties have changed since the last check. This drastically reduces the number of requests towards CGP

Resource type configuration

Key: practiceShaper.resourceTypesProcessor.resourceTypeConfiguration (optional)

Default resource type configuration sent to the Computational Governance Platform (CGP).

References:

• CGP documentation
• Documentation of the /v1/computational-governance/resource-types CGP endpoint

Key	Type	Required	Default	Description
descriptorConfiguration	object	No		Information about the shape of descriptors of this resource type
descriptorConfiguration.resourceNameField	string	No	id	Field inside the resource descriptor that contains its unique identifier
descriptorConfiguration.resourceDisplayNameFields	list[string]	No	["domain", "name", "version"]	List of fields in the resource descriptor to be used to generate a display name
descriptorConfiguration.resourceFilterField	string	No	version	Field inside the resource descriptor used to differentiate evaluation results for the same resource
resolverConfiguration	object	No		Details about the resource perimeter resolver
resolverConfiguration.url	string	No	http://localhost:8088/datamesh.provisioningcoordinator	Base URL of the Perimeter Resolver service
resolverConfiguration.path	string	No	v1/resolve	Base path (without query params) to the resolve endpoint
resolverConfiguration.batchSize	number	No	6	Maximum number of resources requested to the perimeter resolver per request (page size)

Marketplace

Key: practiceShaper.marketplace (optional)

Settings to fine-tune the interaction between Practice Shaper and Marketplace

Key	Type	Required	Default	Description
baseUrl	string	No	witboost marketplace	URL of an alternative marketplace service configured to receive updates about new taxonomies, resources and domains

Taxonomy processor

Key: practiceShaper.marketplace.taxonomyProcessor (optional)

Configurations for the processor responsible for updating the marketplace about changes on taxonomies (entities with kind Taxonomy) in the Practice Shaper.

Key	Type	Required	Default	Description
enabled	string	No	true	Whether to enable the taxonomy processor
cacheEnabled	object	No	true	If true, a taxonomy gets reprocessed only when its properties have changed since the last check. This drastically reduces the number of requests towards the marketplace service

Domain processor

Key: practiceShaper.marketplace.domainProcessor (optional)

Configurations for the processor responsible for updating the marketplace about changes on domain instances (entities with kind Domain) in the Practice Shaper.

Key	Type	Required	Default	Description
enabled	string	No	true	Whether to enable the domain processor
cacheEnabled	object	No	true	If true, a domain gets reprocessed only when its properties have changed since the last check. This drastically reduces the number of requests towards the marketplace service

Resource processor

Key: practiceShaper.marketplace.resourceProcessor (optional)

Configurations for the processor responsible for updating the marketplace about changes on resource instances (entity with kind Resource) in the Practice Shaper.

Key	Type	Required	Default	Description
enabled	string	No	true	Whether to enable the resource processor
cacheEnabled	object	No	true	If true, a resource gets reprocessed only when its properties have changed since the last check. This drastically reduces the number of requests towards the marketplace service

Migration

Key: practiceShaper.migration (optional)

Settings to support the migration from witboost v1 (Data Mesh oriented) to witboost v2 (the one introducing the Practice Shaper)

Key	Type	Required	Default	Description
migrationSectionEnabled	boolean	No	false	Whether to enable the migration panel in the Practice Shaper Settings page. It helps in migrating entities created within witboost v1 to Practice Shaper compliant entities
taxonomyInfoOnOldReleasesEnabled	boolean	No	false	If true, it adds the taxonomy information to the descriptors of old releases that are missing it
consumableInterfaceTypeField	string	No	outputPortType	The witboost marketplace UI extracts this field from the descriptor of consumable interfaces (consumable components) to infer and display the type of data they expose (e.g., SQL, File, Event)

Catalog

Project Unregistration

By default, when you unregister a project from the catalog, all of its releases are not deleted. That means, witboost will continue to track changes from the repositories where the releases entities are located. To change this behaviour, you can add the following configuration properties:

catalog:
  onProjectUnregister:
    unregisterReleases: true

caution

After unregistering the project and all of its releases, if in the future you want to register that project back to the catalog, you will need to manually register each release one by one.

Async validation section

To enable the async validation in witboost you must define the following lines in your app-config.yaml

catalog:
  enableAsyncValidation: true

The above lines will substitute the current "Launch test" method with the asychronous one ( see Async validation)

LLM Engine

To correctly create a new policy using the LLM Engine, the following parameters must be configured as described below:

• enabled: This parameter determines whether the "LLM" option is available as an engine choice during policy creation.

  • if set to true, the "LLM" option will be visible and selectable when creating a new policy.



  • if set to false, the "LLM" option will not be available.



• url: This parameter specifies the default URL used to connect to the microservice. The full URL is composed of the base address url and the corresponding API endpoint endpoint.

Example Configuration:

mesh:
  governance:
    agent:
      cgp:
        enabled: true
        url: http://127.0.0.1:8091
        endpoint: /v1/evaluate

Audit

To enable/disable auditing of the operation performed by the users, just edit the following configuration section:

backend:
  audit:
    enabled: true
    methods:
      - GET
      - POST
      - PUT
      - PATCH
      - DELETE
    cleaners:
      audits:
        enabled: true
        scheduling:
          frequency: { days: 1 }
        options:
          retention: { days: 180 }
          methods:
            - GET

By setting enabled to false, auditing is disabled for all operations. In the platform there are two kinds of operations for which audit is collected:

• REST APIs invocations. In this case you can configure which HTTP methods you want to audit by changing the value of the whitelist field methods; usually you want to audit all of them apart from GET operations, since the table could grow in dimensions very easily.
• Hasura GraphQL mutations. Regular Hasura queries are not audited, since they will not affect the database directly, and will end up in increasing the table dimensions quickly.

Retention policy

You can define a custom retention policy in the configuration, under the cleaners key. Specifically, you define the options of the table to be cleaned (in our case audits) with: the scheduling of the cleaning operation, and the retention policy. Moreover, you can also specify which method(s) you want to clean, otherwise all of them will be cleaned.

By default, the retention policy is set to 180 days, and the cleaning operation is scheduled to run every day.

Integrations section GitLab

An example GitLab config block to public GitLab:

integrations:
gitlab:
  - host: gitlab.com
    token: GITLAB_TOKEN

An example GitLab config block to private GitLab:

integrations:
  gitlab:
    - host: gitlab.my-company.com
      apiBaseUrl: https://gitlab.my-company.com/api/v4
      baseUrl: https://gitlab.my-company.com
      token: ${TECHNICAL_GITLAB_TOKEN}

In this case, the only optional field is baseUrl which is formed from the host if needed.

Integrations section Bitbucket server:

integrations:
  bitbucketServer:
    - host: bitbucket.my-company.org
      token: ${TECHNICAL_BITBUCKET_TOKEN}
      username: admin
      password: xhdegwvitlzy
      isOAuthToken: false

It is not possible to push on a bitbucket repo if you don't have an oauth2 token. Therefore, it is necessary to configure username and password in this case. Otherwise if you use a oauth2 token set only the property isOAuthToken to true

caution

When importing a template from bitbucket always make sure the branch is present in the url. The default branch is never present in the url, in this case add ?at=<branchname>. So if you are importing an URL like this https://<hostname>/projects/data_mesh/repos/test/browse/catalog-info.yaml from the master branch, you should use instead https://<hostname>/projects/data_mesh/repos/test/browse/catalog-info.yaml?at=master.

Integrations section Azure DevOps:

integrations:
  azure:
    - host: dev.azure.com
      credentials:
        - personalAccessToken: ${PERSONAL_ACCESS_TOKEN}

It is not possible to push on an Azure repo if you don't have at least one personalAccessToken set. Therefore, it is mandatory to configure at least one.

caution

When importing a template from Azure DevOps, always make sure the branch is present in the url. The default branch is never present in the url, in this case add query param version=GB<branchname>. So if you are importing an URL like this https://dev.azure.com/<organization>/<project>/_git/<repo>?path=%2Fcatalog-info.yaml from the master branch, you should use instead https://dev.azure.com/<organization>/<project>/_git/<repo>?path=%2Fcatalog-info.yaml&version=GBmaster (remember the starting GB before the branch name).

Integrations section GitHub:

integrations:
  github:
    - host: github.my-company.org
      token: ${TECHNICAL_GITHUB_TOKEN}

Environments

The environments section is used to define the list of environments handled by witboost. The list you define is then pulled by external services. To learn more about them, check the Environments section

Permissions section

To enable the Role-Based Access Control plugin in witboost you must have these lines in your app-config.yaml

permission:
  enabled: true

This will tell witboost to start authorizing requests according to a RBAC policy.

caution

By default, all authorization requests will be denied unless you have already configured some roles and users inside the database

To see how to configure Grant Mechanisms, that enable automatic granting based on particular events, head to the RBAC section

User headers

As described here, witboost enables users to define a set of HTTP headers that will be attached to each HTTP request exchanged between services within the witboost ecosystem while fulfilling provisioning operations (deploy, undeploy, update acl, validate).

User-defined HTTP headers are sent to the Provisioning Coordinator and, depending on the Coordinator's headers forwarding configuration settings , they can be further propagated to other provisioning services (specific provisioners, data catalog proxies, marketplace-compliant services).

The following configurations can be defined under mesh.userHeaders in the app-config*.yaml files:

Key	Type	Default (if not defined)	Description
enabled	boolean	false	Whether user headers should be enabled or not. When false the headers section will not be visibile on the UI and no user headers will be sent to the coordinator
prefix	string	wb-user	Name prefix of each user-defined header, separated from the rest of the name by a dash. For instance, if prefix is wb-user, header my-header becomes wb-user-my-header

caution

When changing the user headers prefix, remember to update the Coordinator's headers forwarding configuration settings accordingly

Token Invalidation

Reference: Token Invalidation

Key: auth.tokenInvalidation (optional)

Key	Type	Required	Default	Description
invalidateOnLogout	boolean	No	false	If set to true, all JWT tokens issued for the current user will be invalidated when the user logs out.
blacklistEntryTTL	number	No	Same as token expiry duration (backend.auth.tokenDurationSeconds)	The time (in seconds) that invalidated tokens remain in the blacklist. Must be at least as long as the longest token expiry to ensure proper coverage. Set to 0 to disable the blacklist (strongly discouraged for memory consumption).

Guest Access

Similar to the other authentication providers, you have to enable the provider in config. Add the following to your app-config.local.yaml

auth:
  providers:
    guest: {}

Autologout

Autologout is a configurable mechanism that allows Witboost to logout inactive users. Inactive users are the ones that don't perform any action on the Witboost app or that are logged in but no Witboost tab is open in the browser. When enabled, the mechanism will track user actions (mouse movement, mouse click, key pressing, taps, etc.) in order to determine if they are active or not. After a certain amount of inactivity, also called idle time, the user will be logged out and he/she will need to sign in again into the app.

To enable the autologout, just place this configuration in your app-config:

auth:
  autologout:
    enabled: true

You will see that after a while the user will be automatically logged out, but only after a prompt dialog will show up to inform the user that Witboost is about to log out.

tip

Users will be logged out after the configured inactivity timeout even if they have all Witboost browser tabs closed. Anyway, this behaviour is configurable. Take a look at the Autologout configuration section

You can configure both the inactivity timeout and the number of seconds before idle when to show the inactivity prompt. You can do so by adjusting these values in the configuration:

auth:
  autologout:
    enabled: true
    idleTimeoutMinutes: 60 # number of minutes after which the user will be logged out
    promptBeforeIdleSeconds: 10 # number of seconds before logout where the user will be prompted. set to 0 to disable the prompt.

Witboost will track user actions made by a pointer device (e.g. a mouse) and/or a keyboard. However, you can decide to change the list of actions tracked by supplying a list of events in the configuration. By default, the user actions, i.e. events, that Witboost will track to determine if the user is still using the platform will be:

• mousemove
• keydown
• wheel
• DOMMouseScroll
• mousewheel
• mousedown
• touchstart
• touchmove
• MSPointerDown
• MSPointerMove
• visibilitychange

If for any reason, you would like to change the list of events that the autologout tracks, just add the events property in configuration and place your list of events:

auth:
  autologout:
    enabled: true
    # track only keyboard events
    events:
      - keydown

You can find a complete list of supported events in the Autologout Supported Events section of this page.

Autologout configuration

We did not mention all autologout configuration properties, for this reason here you can find a full list of autologout configurations, with allowed values and defaults. All configurations keys listed in this table must be placed under auth.autologoutin your app-config.

configuration key	description	allowed values	default value
enabled	Enable/Disable the Autologout feature	true/false	false
idleTimeoutMinutes	Number of minutes after which the user will be logged out	[0.5 minutes, > 0.5 minutes)	60 minutes
promptBeforeIdleSeconds	Number of seconds before idle when a prompt will be shown. Set to 0 to disable the prompt.	>= 0 seconds. must be smaller than idleTimeoutMinutes	10 seconds
events	List of events used to detect user activity on Witboost	Refer to events section	Refer to events section
useWorkerTimers	Enable/disable the usage of Node's worker thread timers instead of main thread timers. This is helpful if you notice that the Browser is killing inactive tab's timers, like the one used by Autologout. If you experience some browser incompatibility, you may try to set this to false.	true/false	true
logoutIfDisconnected	Enable/disable the autologout for disconnected users. disconnected users are the ones that are logged in but have no Witboost tab open in their browsers. If enabled, disconnected users will be automatically logged out after idleTimeoutMinutes	true/false	true

Autologout Supported Events

Here we provide a list of supported DOM events that you can use to fill the configuration, remember that this is an optional step, the Autologout feature is already configured to work with standard user events like mouse movements and keyboard press.

Event	Description
abort	Fired when the loading of a resource has been aborted.
afterprint	Fired after the associated document has started printing or the print preview has been closed.
beforeprint	Fired just before the associated document begins printing or the print preview opens.
blur	Fired when an element has lost focus.
change	Fired for <input>, <select>, and <textarea> elements when a change to the element's value is committed by the user.
click	Fired when a pointing device button (usually a mouse's primary button) is pressed and released on an element.
contextmenu	Fired when the right button of the mouse is clicked (before the context menu is displayed), or when the contextmenu key is pressed (in Windows).
copy	Fired when the user initiates a copy action through the browser's user interface.
cut	Fired when the user initiates a cut action through the browser's user interface.
dblclick	Fired when a pointing device button is clicked twice on an element.
DOMMouseScroll	Fired when the mouse wheel is rolled up or down over an element.
drag	Fired when an element or text selection is being dragged.
dragend	Fired when a drag operation is being ended (by releasing a mouse button or hitting the escape key).
dragenter	Fired when a dragged element or text selection enters a valid drop target.
dragleave	Fired when a dragged element or text selection leaves a valid drop target.
dragover	Fired when an element or text selection is being dragged over a valid drop target (every few hundred milliseconds).
dragstart	Fired when the user starts dragging an element or text selection.
drop	Fired when an element is dropped on a valid drop target.
focus	Fired when an element has received focus.
focusin	Fired when an element is about to receive focus.
focusout	Fired when an element is about to lose focus.
fullscreenchange	Fired when the document goes into or out of full-screen mode.
fullscreenerror	Fired when the browser cannot switch to full-screen mode.
gotpointercapture	Fired after a pointer event got captured.
hashchange	Fired when the fragment identifier of the URL has changed (the part of the URL that follows the # symbol).
input	Fired when an <input> or <textarea> value changes.
invalid	Fired when a submittable element has been checked and does not satisfy its constraints.
keydown	Fired when a key is pressed down.
keypress	Fired when a key that produces a character value is pressed down.
keyup	Fired when a key is released.
load	Fired when progress has stopped (used for images, scripts, and CSS files).
loadeddata	Fired when the first frame of the media has finished loading.
loadedmetadata	Fired when the metadata has been loaded.
loadstart	Fired when the browser has started to load a new audio/video.
lostpointercapture	Fired after a pointer event was released.
message	Fired when a message is received through a WebSocket.
mousedown	Fired when a pointing device button (usually a mouse's primary button) is pressed on an element.
mouseenter	Fired when a pointing device is moved onto the element that has the listener attached.
mouseleave	Fired when a pointing device is moved off the element that has the listener attached.
mousemove	Fired when a pointing device is moved over an element.
mouseover	Fired when a pointing device is moved onto the element that has the listener attached or onto one of its children.
mouseout	Fired when a pointing device is moved off the element that has the listener attached or off one of its children.
mouseup	Fired when a pointing device button is released over an element.
mousewheel	Non-standard. This feature is non-standard and is not on a standards track. Use WheelEvent instead if possible.
MSPointerDown	Fired when contact is made with the touch surface and the button is pressed.
MSPointerMove	Fired when the contact or a pen or the cursor of a mouse is dragged along the touch surface.
offline	Fired when the browser has lost access to the network.
online	Fired when the browser has gained access to the network.
open	Fired when a connection with a WebSocket has been opened.
paste	Fired when the user initiates a paste action through the browser's user interface.
pause	Fired when the audio/video has been paused.
play	Fired when the audio/video has been started or is no longer paused.
playing	Fired when the audio/video is ready to start playing.
pointercancel	Fired when the browser decides to cancel the tracking of pointer movement.
pointerdown	Fired when the pointer is activated.
pointerenter	Fired when a pointer is moved into the hit test boundaries of an element.
pointerleave	Fired when a pointer is moved out of the hit test boundaries of an element.
pointermove	Fired when a pointer changes coordinates.
pointerout	Fired for several reasons including: pointing device is moved out of the hit test boundaries of an element.
pointerover	Fired when a pointer is moved into the hit test boundaries of an element or one of its children.
pointerup	Fired when a pointer is deactivated.
popstate	Fired when the active history entry changes.
progress	Fired to indicate that the browser is fetching the resource(s).
resize	Fired when the document view has been resized.
reset	Fired when a form is reset.
scroll	Fired when the document view or an element has been scrolled.
search	Fired when a user presses enter in a search <input>.
seeked	Fired when a seek operation completed.
seeking	Fired when a seek operation began.
select	Fired after some text has been selected in an input element.
show	Fired when a <menu> element is shown as a context menu.
storage	Fired when a storage area (localStorage) has been changed in the context of another document.
submit	Fired when a form is submitted.
toggle	Fired when the open attribute of a <details> element is toggled.
touchcancel	Fired when a touch point has been disrupted.
touchend	Fired when a touch point is removed from the touch surface.
touchmove	Fired when a touch point is moved along the touch surface.
touchstart	Fired when a touch point is placed on the touch surface.
transitionend	Fired when a CSS transition has completed.
unload	Fired once a page unload (or 'navigate') has occurred.
wheel	Fired when a wheel button of a pointing device is rotated in any direction.
visibilitychange	Fired when the content of a tab has become visible or has been hidden.

Please note that the descriptions are generalized, and the actual behavior may depend on the specific circumstances and context in which the event is used. Be sure to check the Mozilla Network Documentation for a more comprehensive understanding of each event.

Entity kinds locations

You can restrict locations allowed for entities of certain kind in your app-config.yaml through globs and protected branches. So, if for example you require all templates must be contained into a specific repo, you can add following properties:

locations:
  - type: url
  target: # REPOSITORY_URL
  rules:
    - allow: [Templates]

configuring branch policies on repository target above to handle permissions.

Home Page

You can configure a fixed Home Page for all users by setting the mesh.homeUrl configuration.

This configuration should be set to an internal URL that is accessible by all users. For example, a valid URL that could be assigned to this configuration is marketplace/search since all users will be able to access this page.

warning

If you set this to an internal URL that some users cannot access (e.g., a builder page that users without permissions cannot view), it will behave as if you configured a non-existent URL, leading to a poor user experience.

Home Page URL Priority

The Home Page URL is assigned based on the following priority scale, from highest to lowest:

1. Guest Access:

• If the user is logged in as a guest, the Home Page URL is set to /settings.

2. Configuration URL:

• If mesh.homeUrl is available from the configuration, the Home Page URL is set to this value.

3. Catalog Permissions:

• If the user has either catalogEntityReadPermission or catalogLocationReadPermission enabled, the Home Page URL is set to /my-projects/catalog.

4. Fallback Value:

• If none of the above conditions are met, the Home Page URL falls back to marketplace/search.

Witboost Marketplace

UI

Data Contracts

Settings

Key: mesh.marketplace.ui.dataContracts.settings

References:

• Data Contract Settings

Key	Type	Required	Default	Description
globalPath	string	No	dataContract.settings	Path in a data contract descriptor where settings are expected by default
ingestionModePath	string	No	<globalPath>.ingestionMode Note: <globalPath> depends on the value of the globalPath property. So, by default, the ingestion mode path is dataContract.settings.ingestionMode	Path in a data contract descriptor where the ingestion mode setting is expected
onBrokenContractPath	string	No	<globalPath>.onBrokenContract	Path in a data contract descriptor where the on broken contract setting is expected
descriptionPath	string	No	<globalPath>.description	Path in a data contract descriptor where the data contract description is expected

Backend

The Marketplace Backend Plugin serves as a microservice implementing the witboost Marketplace Plugin API.

The following configurations fall under key mesh.marketplace.backend:

Key	Type	Required	Default	Description
enabled	boolean	No	true	Whether to enable the marketplace backend plugin
descriptorParsingConfig	object	No		Settings to fine-tune the parsing operation on a project descriptor

descriptorParsingConfig object:

Key	Type	Required	Default	Description
defaultTaxonomy	string	No	urn:dmb:taxonomy:data-mesh-taxonomy	Taxonomy to assign the project to, when no explicit indications are found in the descriptor
dependencyResolver	object	No		How to parse and enrich the descriptor of a project component based on its dependencies

descriptorParsingConfig.dependencyResolver object:

Key	Type	Required	Default	Description
enabled	boolean	No	false	Whether to enable the dependency resolver
fieldsToCopy	string[]	No	[dataContract, semanticLinking, sampleData]	If not empty, the dependency resolver copies the specified fields from a shoppable or consumable dependency (the first one found) to the given component descriptor

Startup Actions

The startupActions section is used to configure the list of actions executed when the Witboost UI service is started. These actions are predefined by the platform and are executed correctly only once at startup time, so platform restarts won't retrigger correctly executed actions. If any of the defined actions fails and there is no defined retry strategy or the allowed retries have all been performed, the following actions are not executed and a platform restart is required to retrigger the process.

As these actions are executed correctly only once, in the case any of the actions need to be retriggered, the corresponding row in the startup-actions.startup-actions table needs to be deleted.

warning

Many of these actions rely on an active connection to the internet to download and register the locations based on our publicly available Starter Kit. These actions are signalled with this symbol: 🌐

If your Witboost instance doesn't have a connection to the internet, please follow the steps described on the action to disable the behaviour or configure it to accomodate your environment.

Listed below are the startup actions performed by Witboost, in order of execution:

Practice Shaper default taxonomy locations 🌐

ID: practice-shaper-register

This action defines a list of Practice Shaper entities to be registered as a default taxonomy. These entities are registered if and only if no taxonomies are already registered on Witboost, so to not give conflicts with existing installations.

By default, this configuration registers the Data Mesh taxonomy. Overriding this configuration will remove this taxonomy in favor of the overriden list of locations.

For example, to override the Data Mesh taxonomy in favour of a Lakehouse Medallion taxonomy, you can setup the configuration as follows:

startupActions:
  catalog:
    practiceShaperLocations:
      - https://github.com/agile-lab-dev/witboost-practice-shaper-presets/blob/master/src/data-landscapes/medallion/medallion-taxonomy.yaml

As these actions are performed correctly only once when Witboost is executed, this change won't be reflected if performed after a restart of the platform or any configuration change, and the taxonomy would need to be registered manually as explained here.

info

🌐: The default Taxonomy locations configured for this action are publicly available on the internet, and as such it is necessary for Witboost to have an internet connection. If your installation is air-gapped, you can implement one of the following solutions:

• Disable the automatic registration by setting startupActions.catalog.practiceShaperLocations to [] or null.

or

• Fork the Practice Shaper presets repository on your private SCM and override the configuration as shown above to register the catalog-info of your desired data landscape (e.g. src/data-landscapes/data-mesh/data-mesh-taxonomy.yaml).

Default locations

ID: location-register

Startup action used to register a list of locations on the Witboost catalog. Locations are not registered if they already exist. This is useful to automatically register important locations like a set of initial templates.

If any of the locations are deleted at a later point, these locations are not re-registered as every action is executed correctly only once.

For example, to add a default component, you can setup the configuration as follows:

startupActions:
  catalog:
    defaultLocations:
      - https://github.com/backstage/backstage/blob/master/catalog-info.yaml

warning

Avoid adding to this configuration locations that are already managed by other actions, like the Practice Shaper register action, the Access Control Request register action, or the Catalog catalog.locations configuration. Doing so might result in undesired behaviour.

Access Control Request template locations 🌐

ID: access-control-request-register

Startup action used to register a list of default Access Control Request template locations to the Witboost catalog. These entities are registered if and only if no other Access Control Request templates are already registered on Witboost, so to not give conflicts with existing installations.

By default, this configuration registers the Access Control Request templates of the Witboost Starter Kit. Overriding this configuration will remove this Access Control Request templates in favor of the overriden list of locations.

For example, to override the default Access Control Request templates, you can setup the configuration as follows:

startupActions:
  catalog:
    accessRequestLocations:
      - https://your-private-scm.com/your-private-access-request-template/grant-template.yaml
      - https://your-private-scm.com/your-private-access-request-template/revoke-template.yaml

As these actions are performed correctly only once when Witboost is executed, this change won't be reflected if performed after a restart of the platform or any configuration change, and the Access Control Request templates would need to be registered manually as explained here.

info

🌐: The default Access Control Request Locations configured for this action are publicly available on the internet, and as such it is necessary for Witboost to have an internet connection. If your installation is air-gapped, you can implement one of the following solutions:

• Disable the automatic registration by setting startupActions.catalog.accessRequestLocations to [] or null.

or

• Fork the Access Control Request template repository on your private SCM and override the configuration as shown above to register both the grant template (grant-template.yaml) and revoke template (revoke-template.yaml).

RBAC preset registration

ID: rbac-preset-register

Startup action used to register a RBAC preset, consisting of a predefined set of roles and roles permissions, and allowing to optionally configure a list of roles subjects for each role. This is useful to define an initial RBAC setup for the Witboost platform that can then be modified. The preset is registered if and only if there are no other roles registered on RBAC.

The current provided presets are:

• Default: Enabled by default. Key: default

The default preset including five roles: ADMINISTRATOR, READ_ONLY, DP_OWNER, DP_DEVELOPER, GOVERNANCE, following the structure shown in the example setup. Permissions regarding a specific environment are created based on the configured environments. If new environments are added, roles permissions need to be added manually, as startup actions are only executed correctly once.

startupActions:
  rbac:
    preset: 'default'

For each preset, it is possible to define a list of roles subjects for each role, configured under the startupActions.rbac.<preset_key>.<role_id>. Under each role, an optional list of users and groups written in the form shown here can be added. Roles subjectes are granted Global scope.

The configuration for each provided preset is as follows:

• Default:

startupActions:
  rbac:
    preset: 'default'
    default:
      rolesSubjects:
        ADMINISTRATOR: []
        READ_ONLY: []
        DP_OWNER: []
        DP_DEVELOPER: []
        GOVERNANCE: []
